LME.LUU

The ball retainer is mounted inside the extended bushing together with the steel balls, and sealed with a retaining ring (seal) from one side or both sides of the bushing to form a complete LME. LME8LUU LME12LUU LME16LUU LME20LUU LME25LUU LME30LUU LME40LUU LME50LUU LME60LUU

Classification :

Linear Motion Bearings

+8615376165693

admin@tfnbearing.com

E-mail

PRODUCT DETAILS

LME..LUU(Long Type)

The size of LME.LUU long linear motion bearing is metric version, making the product extensively used in the European countries. This type of standard linear bushings LME.LUU provide low friction on high speed movement, and the shaft diameter is from 8mm to 60mm.

Bearing Model	d(mm)	D(mm)	L(mm)
LME8LUU	8	16	45
LME12LUU	12	22	57
LME16LUU	16	26	70
LME20LUU	20	32	80
LME25LUU	25	40	112
LME30LUU	30	47	123
LME40LUU	40	62	154
LME50LUU	50	75	192
LME60LUU	60	90	211

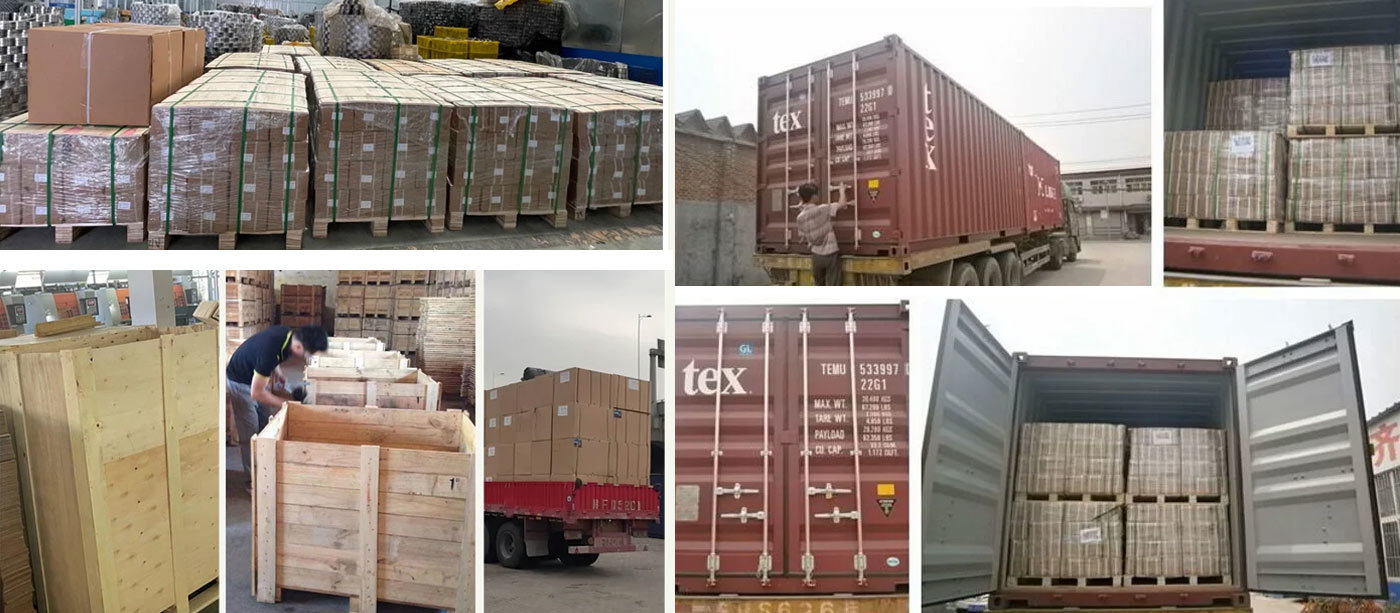

Packaging and shipping

Shandong TFN Bearing Industry Co., Ltd. Since its establishment in 1985, has been committed to the design and development of high-quality bearing line, has 35 years of bearing innovation and production management.

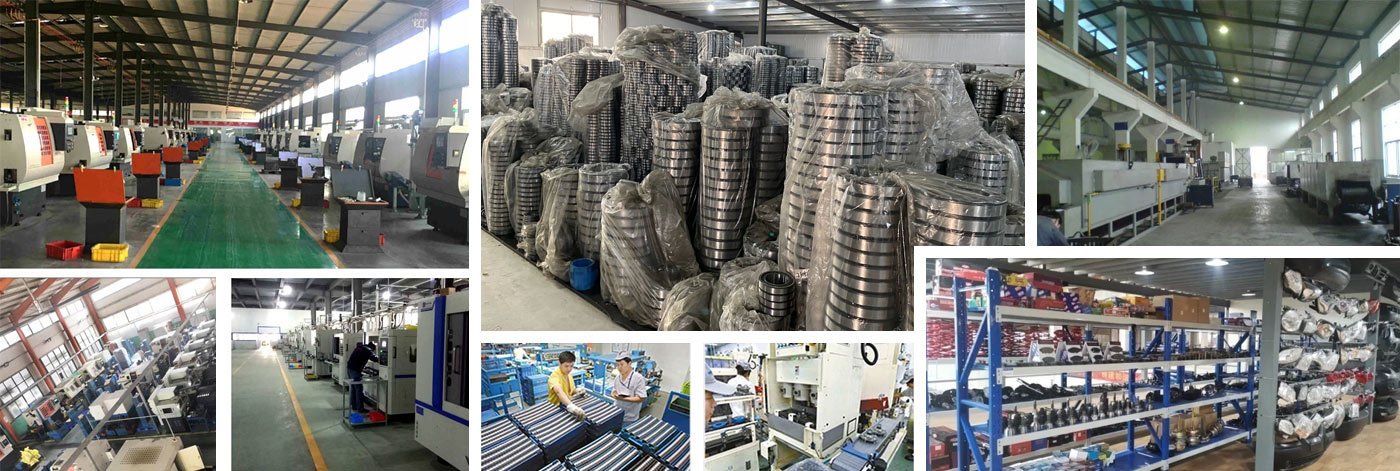

Factory Appearance

Products mainly include spherical roller bearing, taper roller bearing, cylindrical roller bearing, thrust roller bearing, wheel hub bearing, deep groove ball bearing, ceramic bearing, pillow block bearing. etc
